Straight Arbor Slim Type
 |
 |

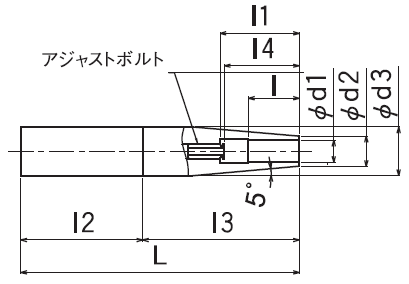

SS□□-TG□□S-□□ Φ6～Φ16 テーパ角 5.0°
| 型式 | d1 | 角度 | 先端肉厚 | L | 対応刃物 | d2 | d3 | l2 | l3 | l | l1 | 冷却アダプタ |
| SS25-TG6S-170 | 6 | 5 | 2 | 170 | Carbide | 10 | 25 | 84.3 | 85.7 | 21 | 36 | T3-K/6S |
| SS25-TG8S-170 | 8 | 12 | 95.7 | 74.3 | 25 | T3-K/8S | ||||||
| SS32-TG6S-170 | 6 | 10 | 32 | 75 | 95 | 21 | T3-K/6S | |||||
| SS32-TG8S-170 | 8 | 12 | 25 | T3-K/8S | ||||||||
| SS32-TG10S-170 | 10 | 14 | 31 | 42 | T3-K/10S | |||||||
| SS32-TG12S-170 | 12 | 16 | 78.6 | 91.4 | 34 | 47 | T3-K/12S | |||||
| SS32-TG16S-170 | 16 | 3.5 | Carbide/HSS | 23 | 118.6 | 51.4 | 40 | 50 | T3-K/16S |
