Straight Arbor Regular Type
 |
 |

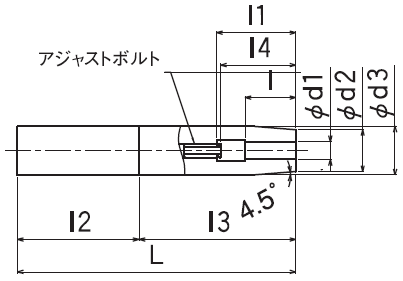

SS□□-TG□□-□□ Φ6～Φ12 テーパ角 4.5°
| 型式 | φd1 | 角度 | 先端肉厚 | L | 対応刃物 | φd2 | φd3 | l2 | l3 | l | l1 | 冷却アダプタ |
| SS25-TG6-145 | 6 | 4.5 | 7 | 145 | Carbide/HSS | 20 | 25 | 60 | 85 | 21 | 36 | T3-K/6-9 |
| SS25-TG8-145 | 8 | 6 | 25 | |||||||||
| SS25-TG8-210 | 210 | 125 | ||||||||||
| SS25-TG10-210 | 10 | 7 | 24 | 31 | 42 | T3-K/9.1-12 | ||||||
| SS32-TG8-145 | 8 | 6 | 145 | 20 | 32 | 60 | 25 | 36 | T3-K/6-9 | |||
| SS32-TG10-145 | 10 | 7 | 24 | 32 | 42 | T3-K/9.1-12 | ||||||
| SS32-TG12-145 | 12 | 6 | 34 | 47 |
